PET/Polyester Monofilament Extrusion Machine/ Extrusion Machine Series

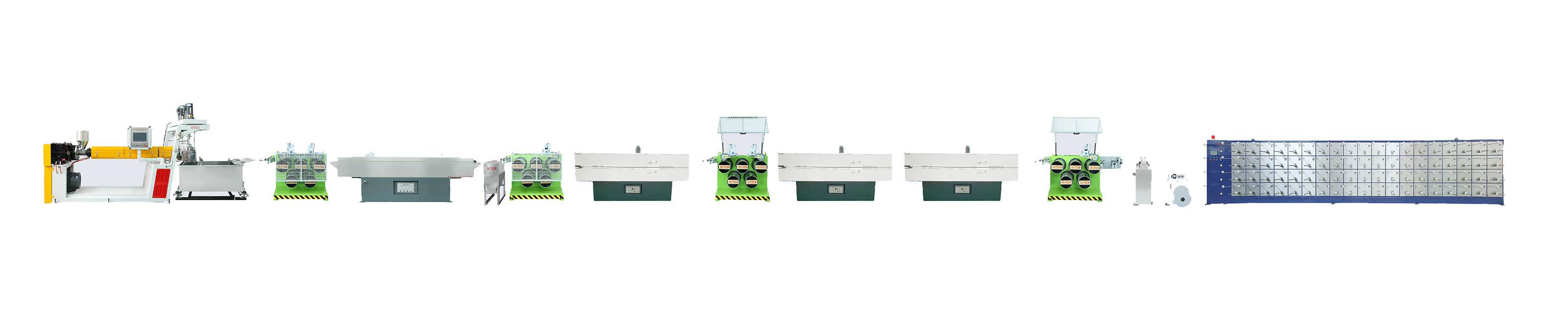

Polyester/PET Monofilament Extrusion Machines

Zonel Plastic provide the monofilament extrusion machines which specially designed for polyester monofilament production, the properties as following:

1. Newly designed screw for polyester monofilament extruding, optimized length to diameter rate, controlled by PLC.
2. S.S. and enlarged filter tank, with a perfect filtering performance.
3. Electrical heating hot water tank, homo-thermal designing, equal quality of the monofilament.
4. Advanced technology on stretching machine, stable operating and won’t change the shape.
5. Recycled hot air oven with newly designed inner structure, with equal temperature and save power.
6. Equal tension designed winding machine.

  • Pictures
  • For Textile
  • For Brush
  • For Industrial Net& Plasteel wire
Polyester/PET Monofilament Extrusion Machines
Newly designed screw for polyester monofilament extruding, optimized length to diameter rate, controlled by PLC...

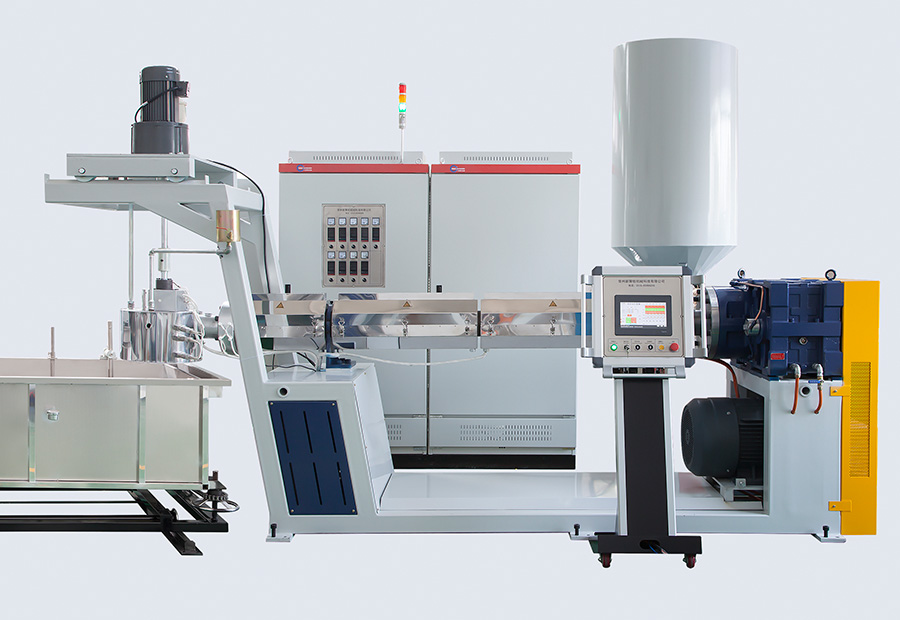

  • Polyester/PET Monofilament Extrusion Machines
    Newly designed screw for polyester monofilament extruding, optimized length to diameter rate, controlled by PLC...

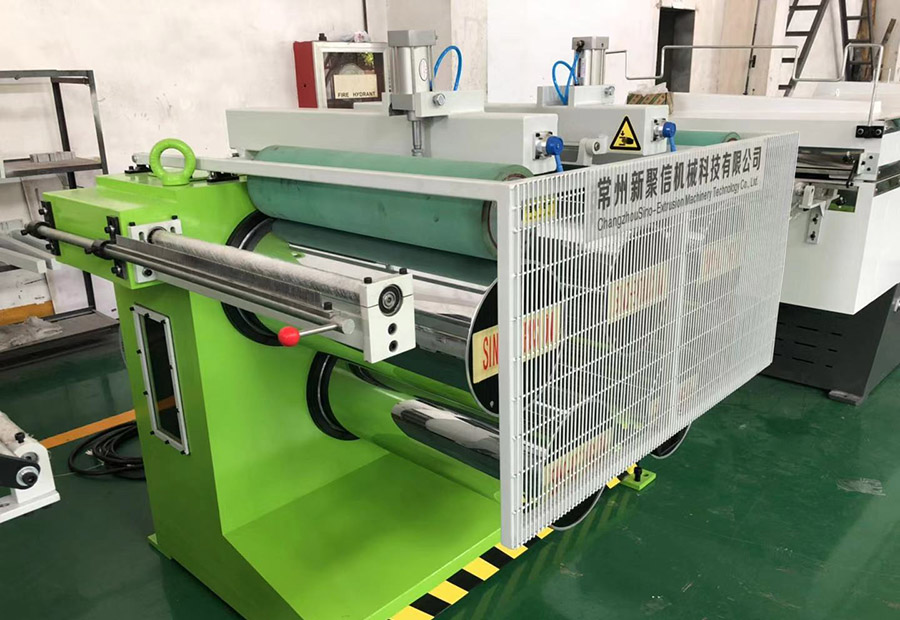

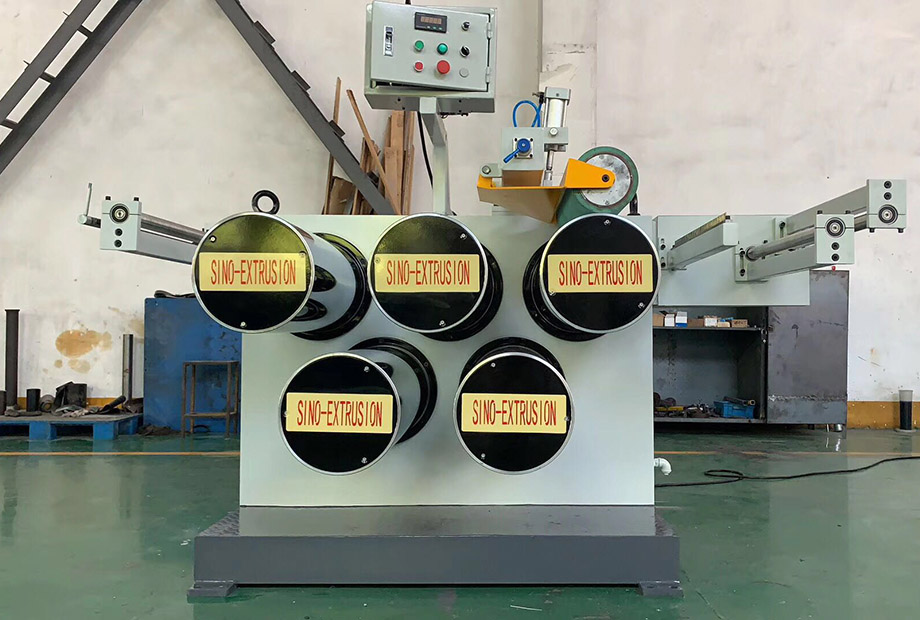

  • Polyester/PET Monofilament Extrusion Machine-Stretching Machine
    S.S. and enlarged filter tank, with a perfect filtering performance.European technology on stretching machine, stable operating and won’t change the shape...

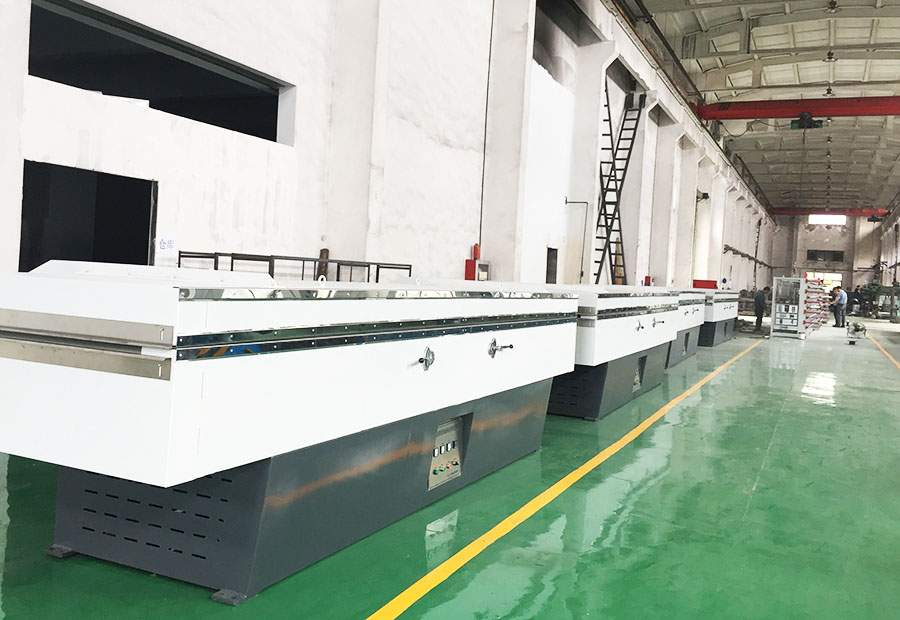

  • Polyester/PET Monofilament Extrusion Machine-Hot Air Oven
    Recycled hot air oven with newly designed inner structure, with equal temperature and save power.Electrical heating hot water tank, homo-thermal designing, equal quality of the monofilament...

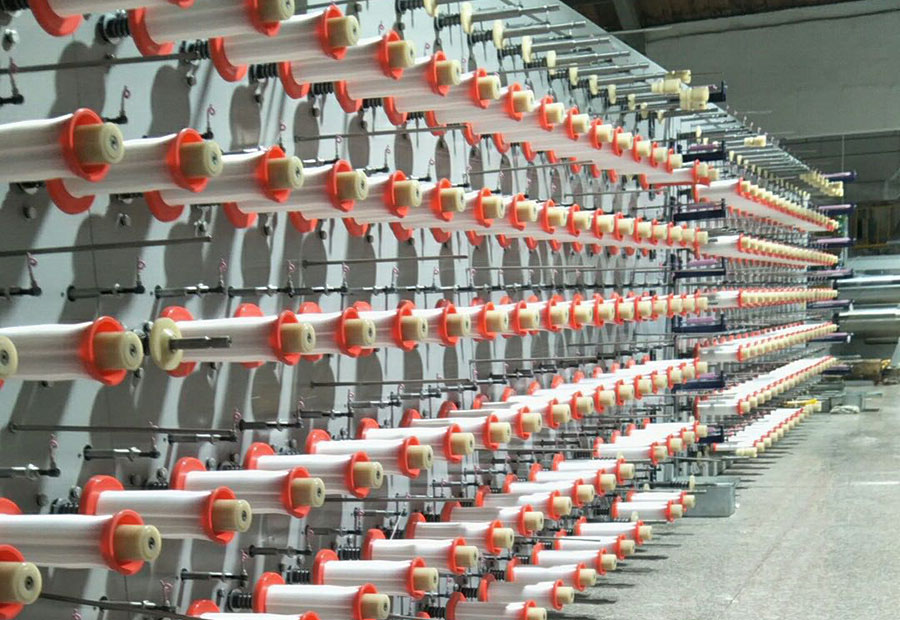

  • Polyester/PET Monofilament Extrusion Machine-Winding Machine
    Equal tension designed winding machine...

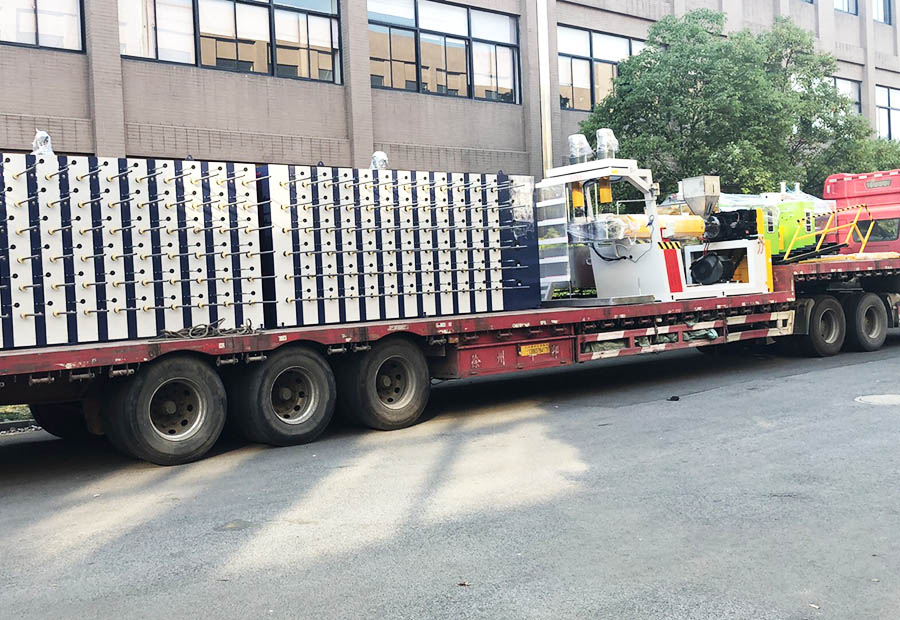

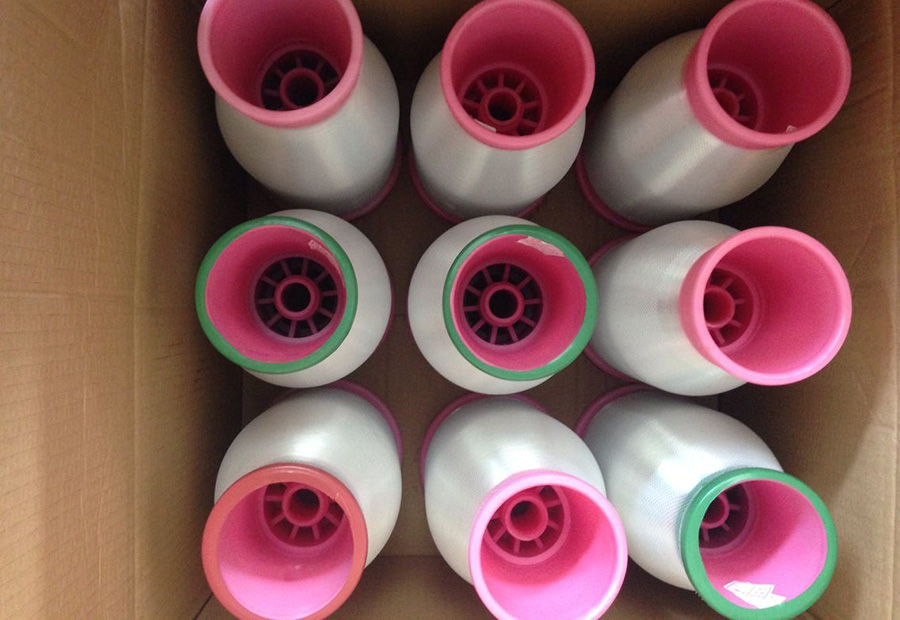

  • Polyester/PET Monofilament Extrusion Machine-Delivery
    Delivery and Packing Can be Customized...
Polyester Monofilament Extrusion Machine Series 1.
Main application:

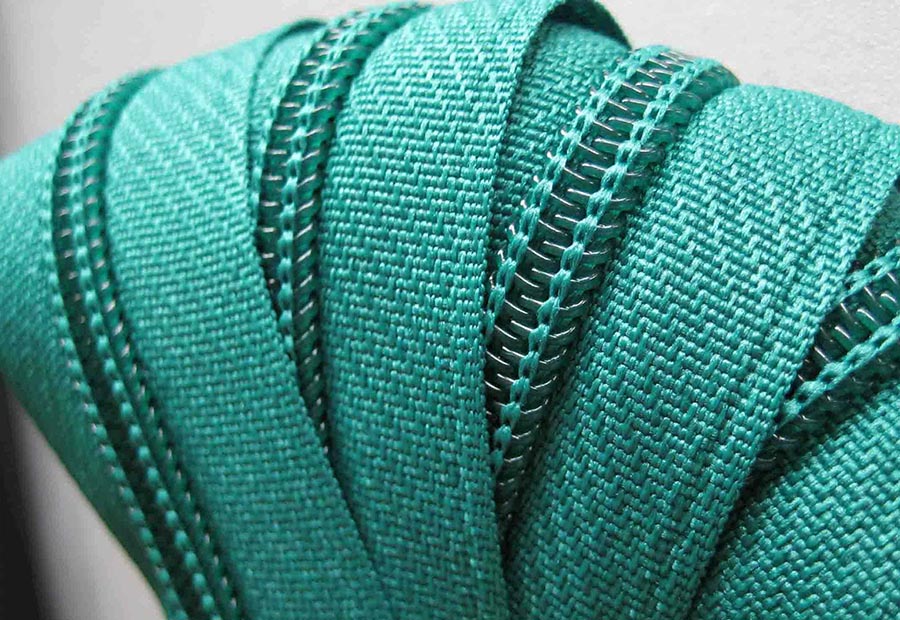

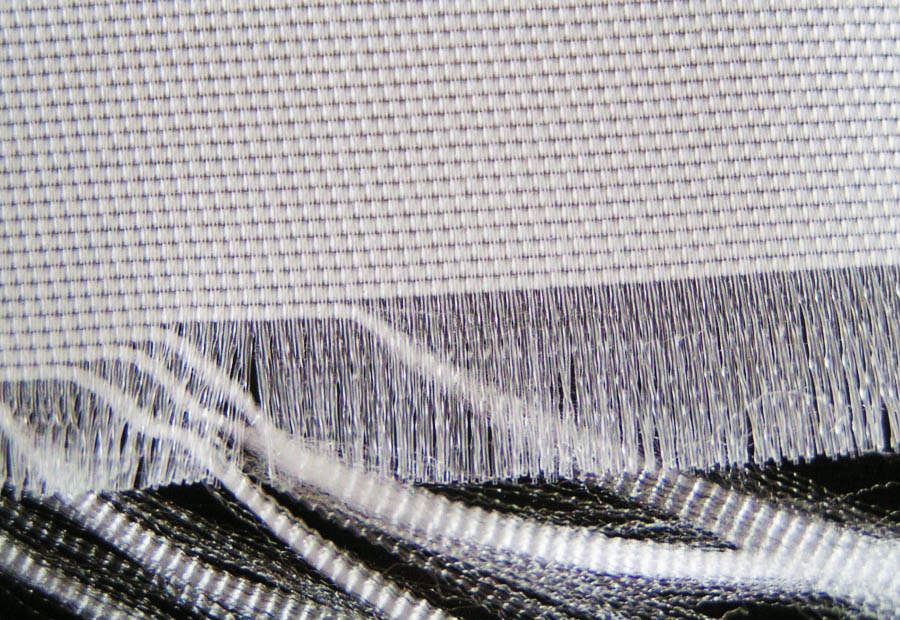

For the production of polyester monofilament that can be used for zipper making, mesh pipe knitting/weaving, spacer fabric knitting, belt knitting, industrial fabrics weaving, shoes’net production, Velcro producing, sewing thread, embroidery yarn, etc.

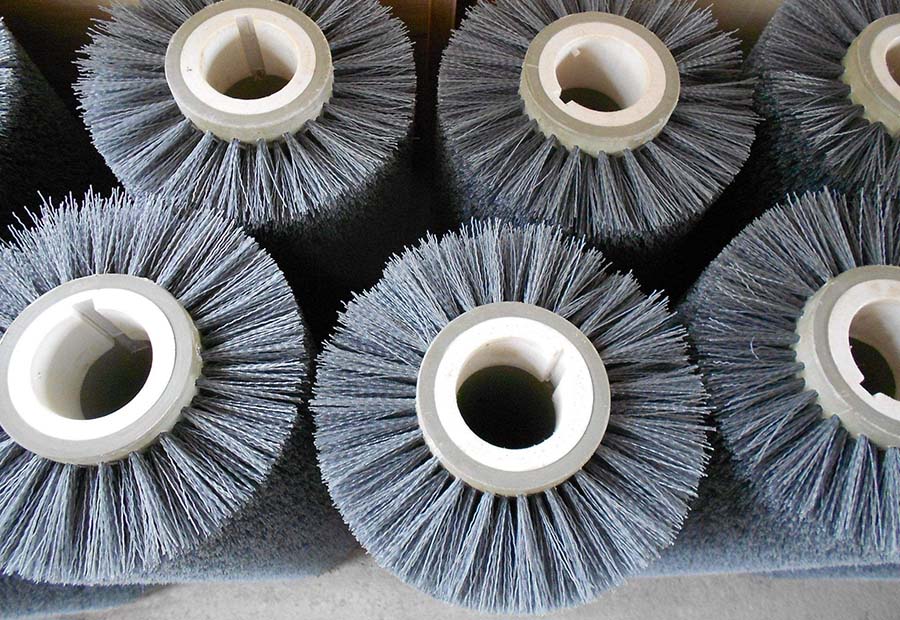

polyester monofilament for brushes
polyester monofilament for brushes
polyester monofilament for brushes

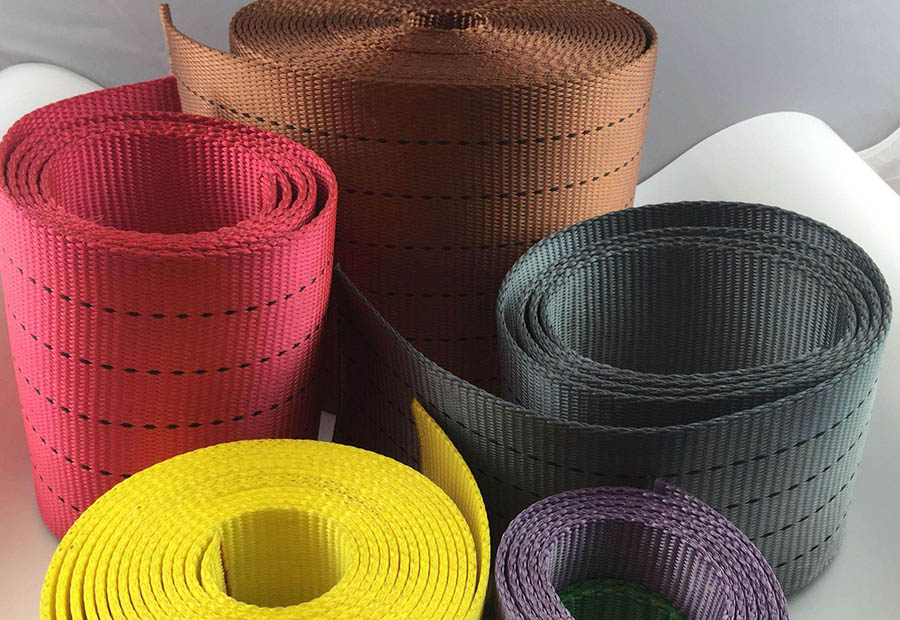

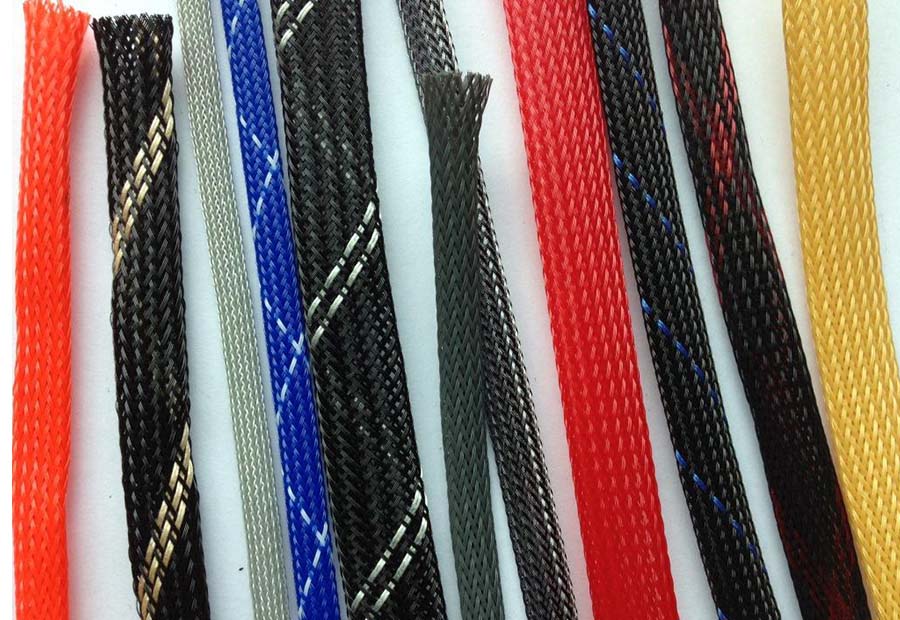

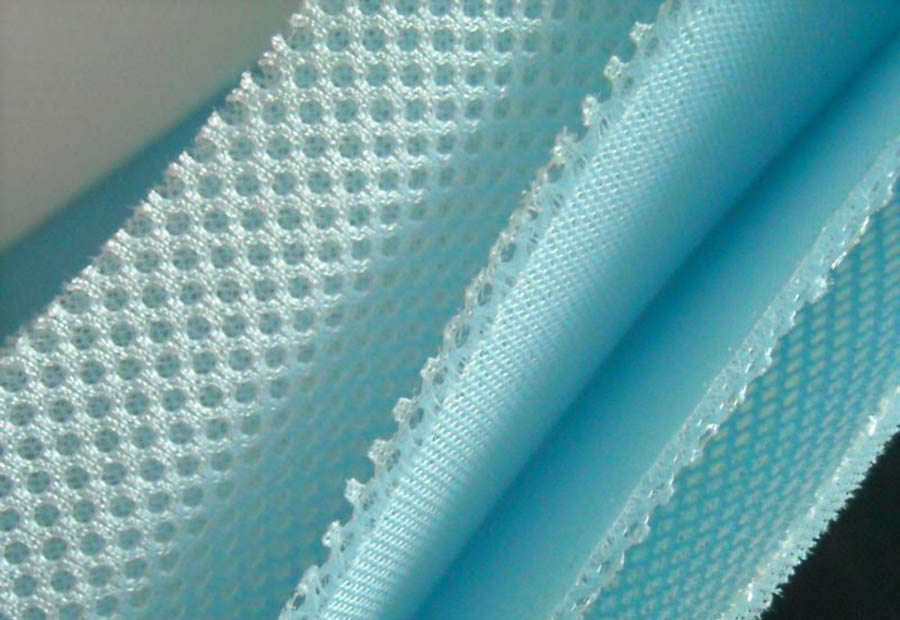

polyester monofilament for spacer fabric monofilament for stripe/belt weaving/velcro weaving monofilament for mesh pipe weaving

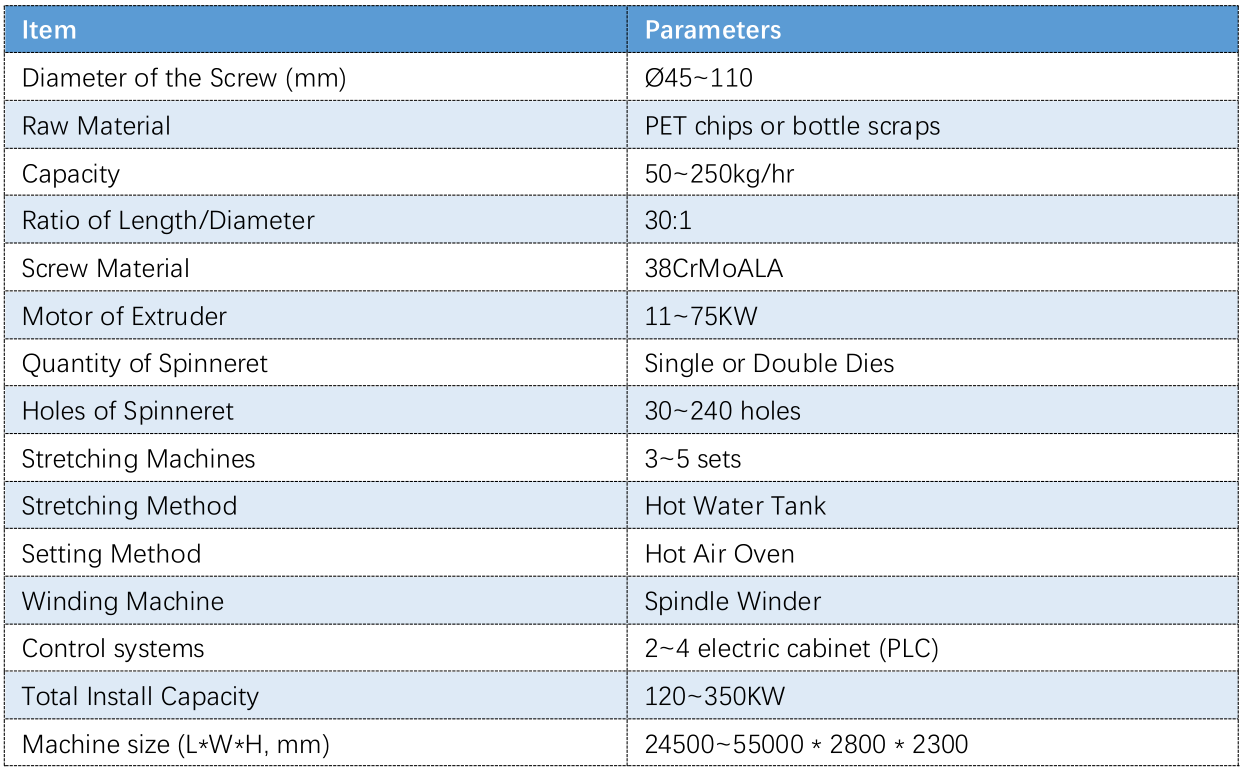

Typical Parameters of the Extrusion Machine
brush mono extrusion data
Zonel Plastic can arrange the produciton/customize according to clients' reqiremets.
Polyester Monofilament Extrusion Machine Series 2.

Main application:

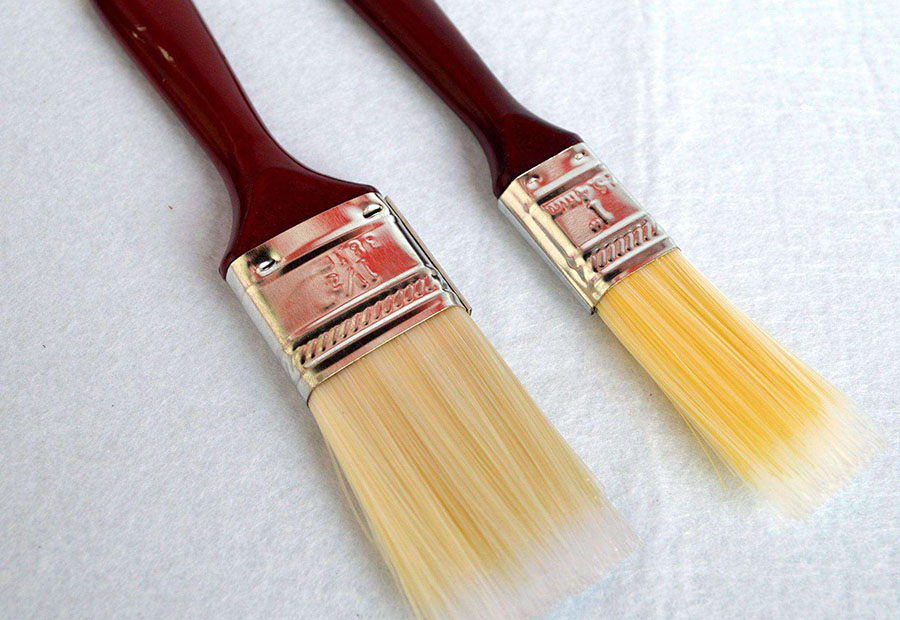

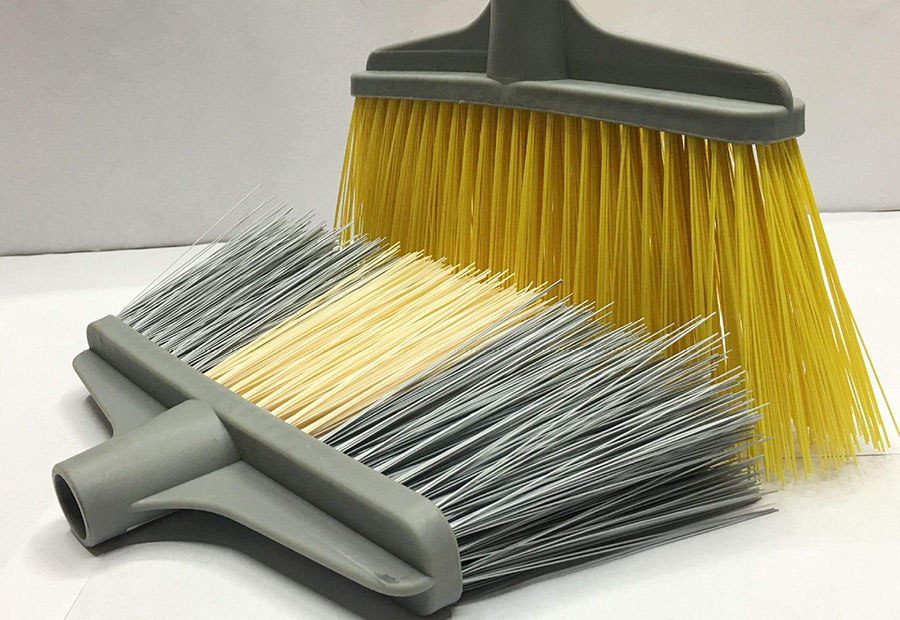

For the polyester monofilament production for brushes, such as for broom, painting brush, sweeper brushes, etc.

polyester monofilament for brushes polyester monofilament for brushes polyester monofilament for brushes

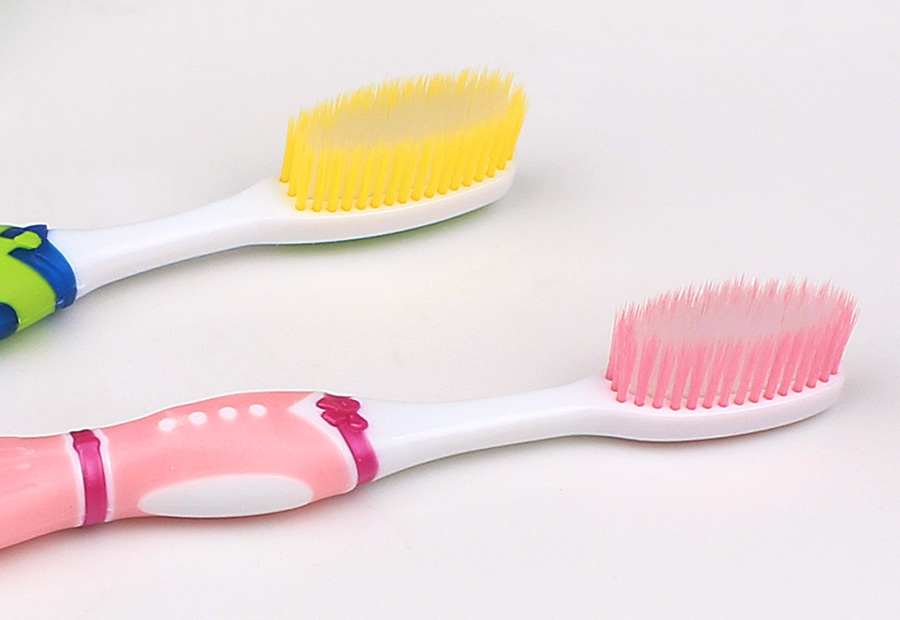

The same machine after some adjustment also suitable for PBT monofilament, PA monofilament extrusion with the usage such as tooth brushes, make up brushes, etc.

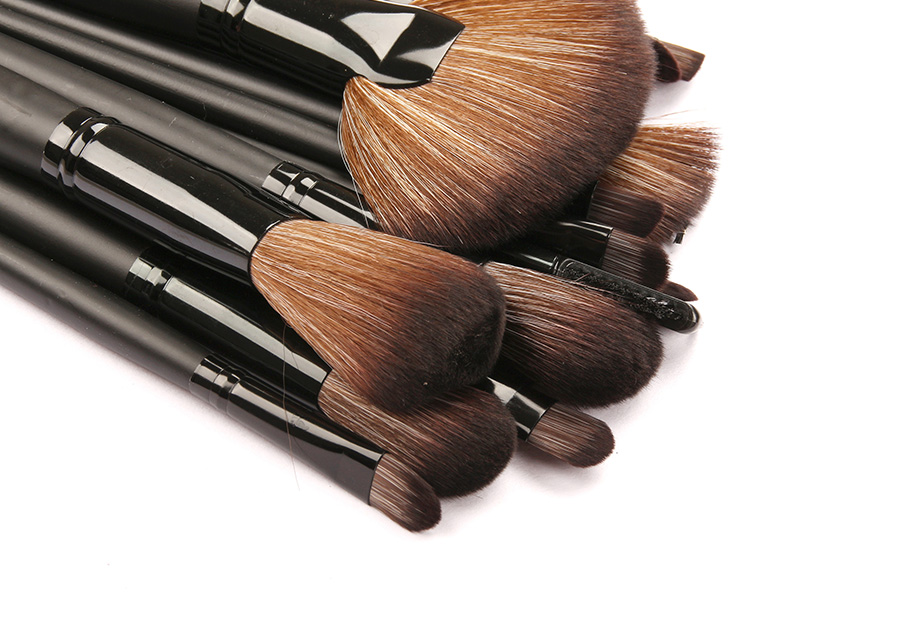

polyester monofilament for brushes monofilament for make up brushes

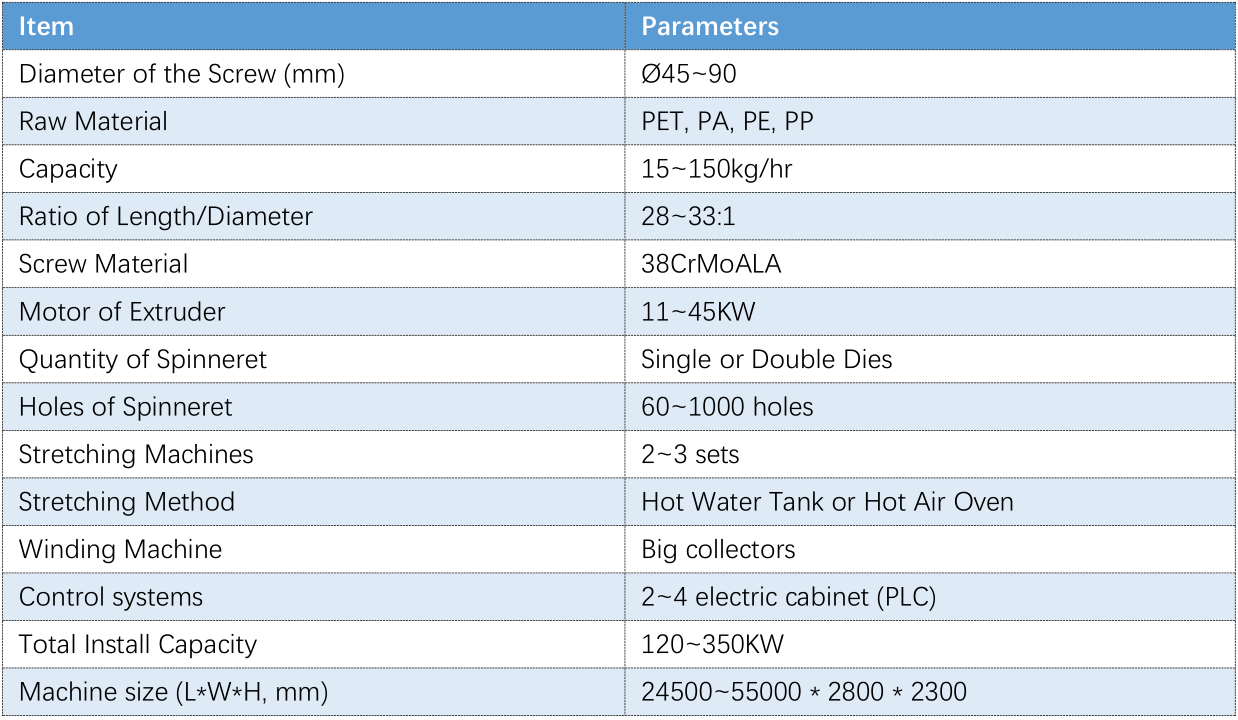

Typical Parameters of the Extrusion Machine
brush mono extrusion data
Zonel Plastic can arrange the produciton/customize according to clients' reqiremets.
Polyester Monofilament Extrusion Machine Series 3.
Main application:
For the production of polyester monofilament that can be used for polyester filter net belt weaving, plasteel wire/ supporting wire for agricultural usage.

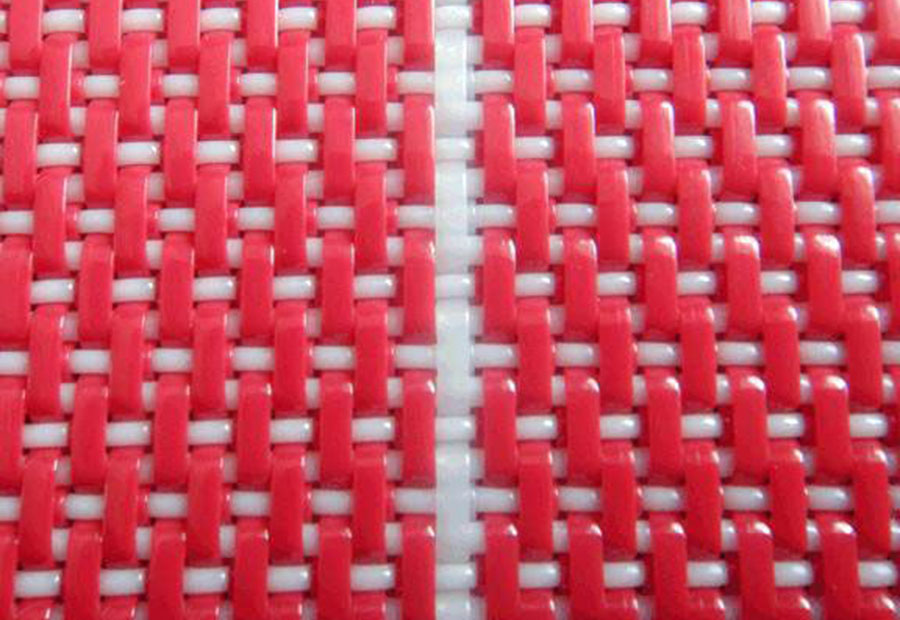

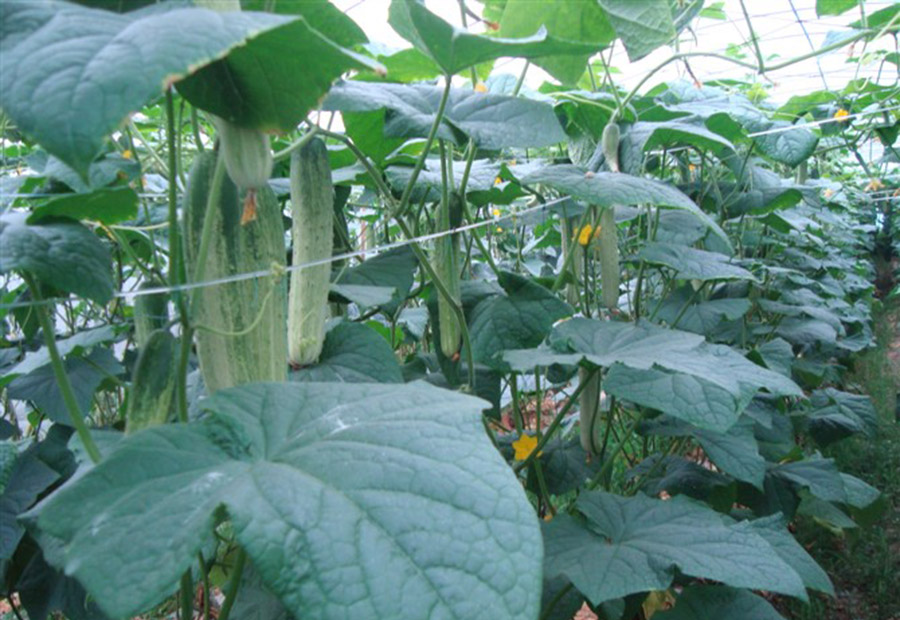

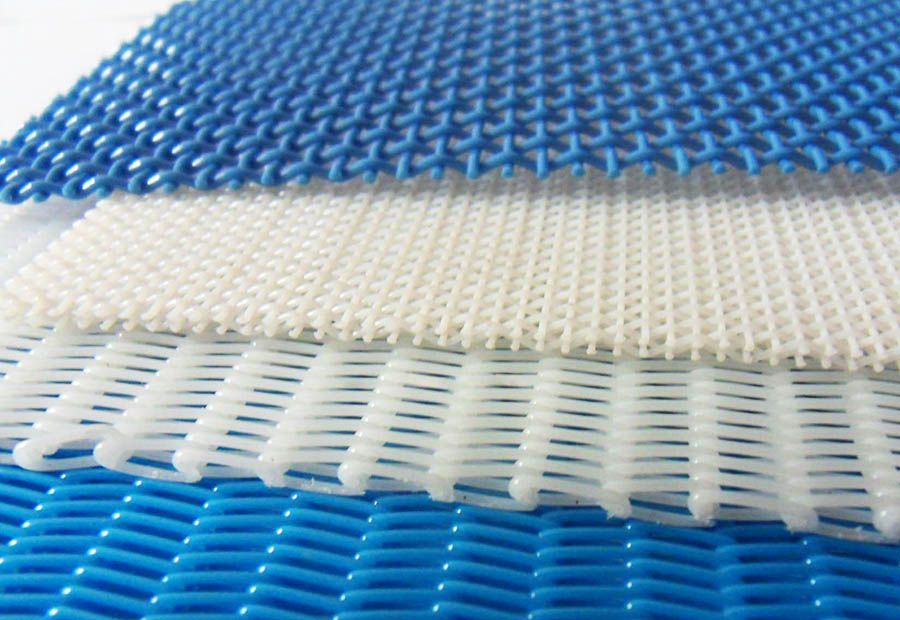

polyester net mono production line polyester monofilament for net plasteel wire/supporting wire

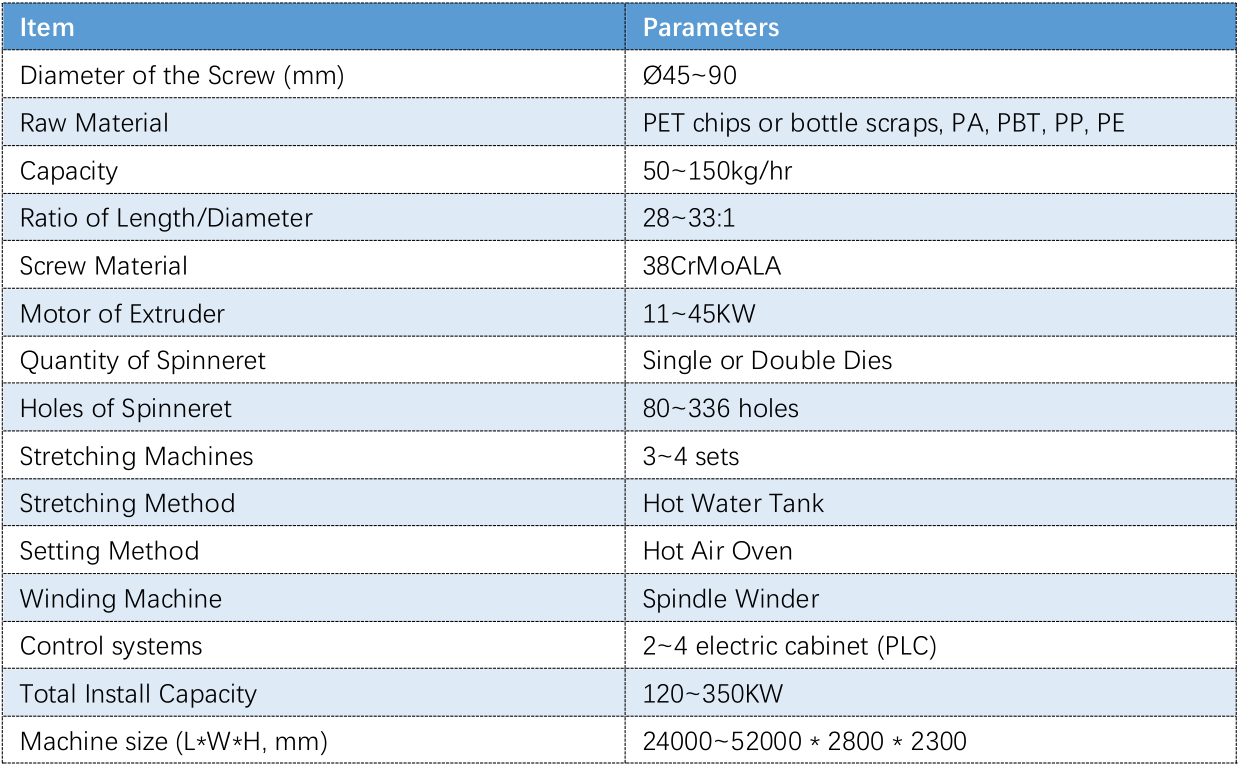

Typical Parameters of the Extrusion Machine
Zonel Plastic can arrange the produciton/customize according to clients' reqiremets.
