Polyamide/PA/Nylon Monofilament Extrusion Machines

Zonel Plastic provide the monofilament extrusion machines which specially designed for polyamide/PA monofilament production according to different usages, such as for normal textiles, for fishing usage, for trimmer lines, etc.
The properties for the extrusion machine as following:

1. Newly designed screw for PA/nylon monofilament extruding, optimized length to diameter rate, controlled by PLC.
2. S.S. and enlarged filter tank, with a perfect filtering performance.
3. The extruder adopt the technology of pressure sensor so as to control the output of screw punctually.
4. Electrical heating hot water tank, homo-thermal designing, equal quality of the monofilament.
5. Advanced technology on stretching machine, stable operating and won’t change the shape.
6. Recycled hot air oven with newly designed inner structure, with equal temperature and save power.


  • Pictures
  • For Textile
  • For Fishing Application
  • For Trimmer lines & Others
Zonel Plastic provide the monofilament extrusion machines which specially designed for polyamide/PA monofilament production according to different usages, such as for normal textiles, for fishing usage, for trimmer lines, etc...

  • Polyamide/PA/Nylon Monofilament Extrusion Machines
    Zonel Plastic provide the monofilament extrusion machines which specially designed for polyamide/PA monofilament production according to different usages, such as for normal textiles, for fishing usage, for trimmer lines, etc...
  • Polyamide/PA/Nylon Monofilament Extrusion Machines
    1. Newly designed screw for PA/nylon monofilament extruding, optimized length to diameter rate, controlled by PLC; 2. S.S. and enlarged filter tank, with a perfect filtering performance...

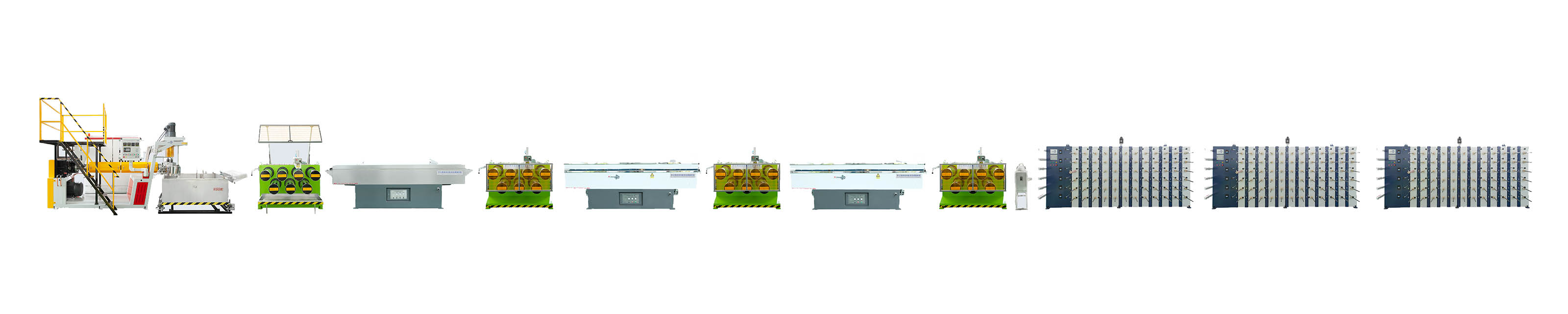

  • Polyamide/PA/Nylon Monofilament Extrusion lines
    3. The extruder adopt the technology of pressure sensor so as to control the output of screw punctually; 4. Electrical heating hot water tank, homo-thermal designing, equal quality of the monofilament...

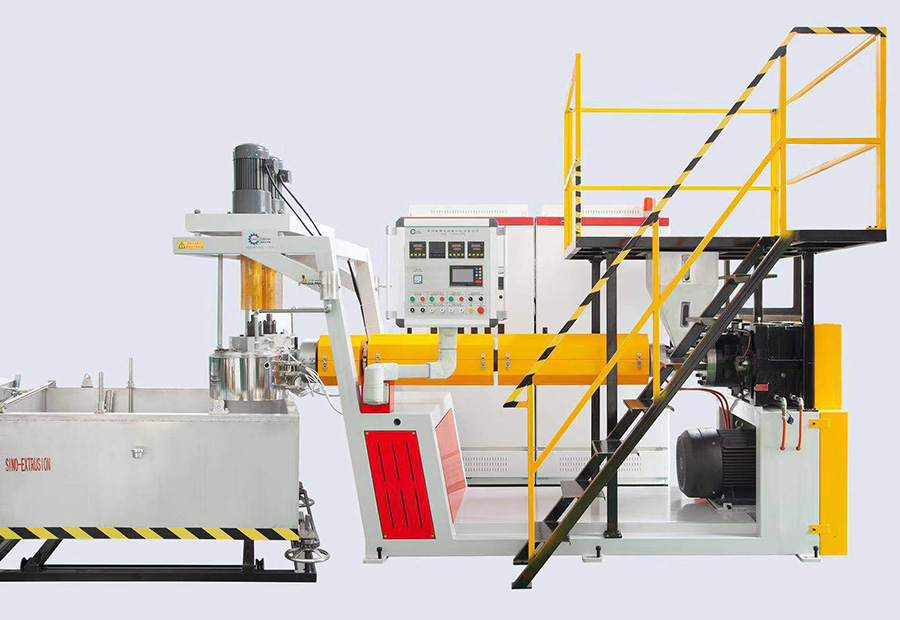

  • Polyamide/PA/Nylon Monofilament Extruding machines
    5. Advanced technology on stretching machine, stable operating and won’t change the shape; 6. Recycled hot air oven with newly designed inner structure, with equal temperature and save power...
  • Polyamide/PA/Nylon Monofilament Extruding machines
    Delivery and Packing Can be Customized...
Polyamide/PA/Nylon Monofilament Extrusion Machine Series 1.
Main application:
For the production of PA (nylon) monofilament that can be used for industrial fabrics and mesh weaving, mesh pipe for cable production, sewing thread, embroidery yarn, rope, Velcro tapes, etc.
PA monofilament for textile nylon industrial fabric velcro tapes
PA monofilament for textile nylon mesh pipe for cable

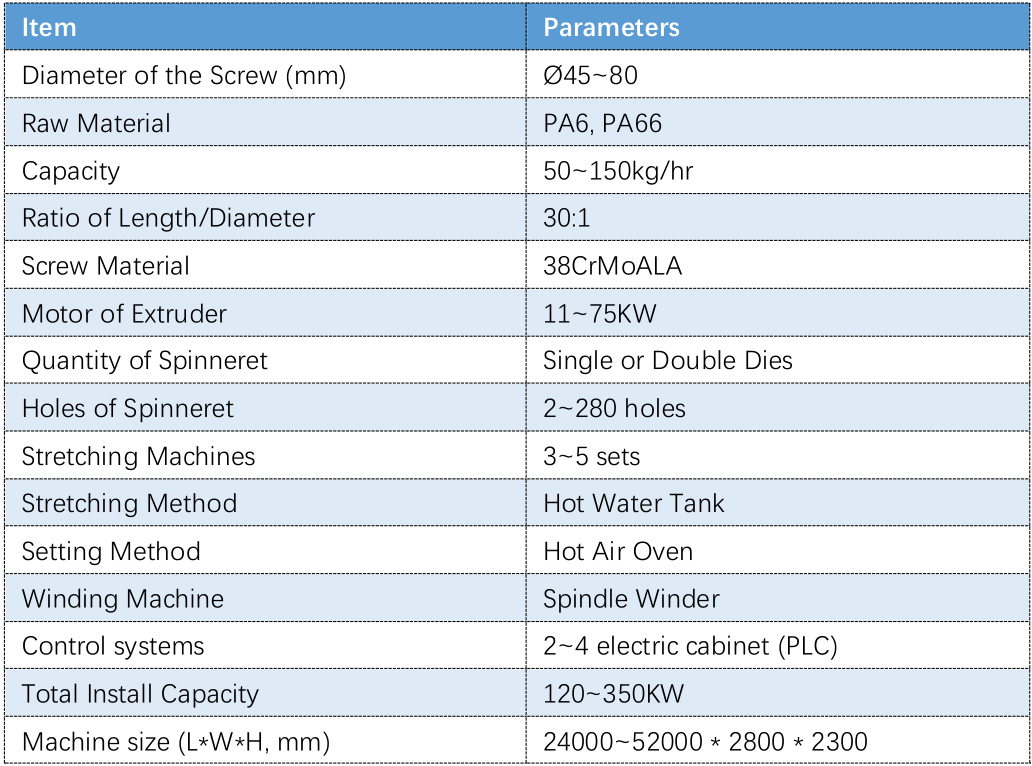

Typical Parameters of the Extrusion Machine
PA monofilament extrusion machine for textile data
Zonel Plastic can arrange the produciton/customize according to clients' reqiremets.
Polyamide/PA/Nylon Monofilament Extrusion Machine Series 2.

Main application:
For the monofilament extruding for the usage of fishing works, such as the fishing lines, monofilament for fishing net knitting, etc.

fishing line extrusion machines fishing net monofilament extrusion machine

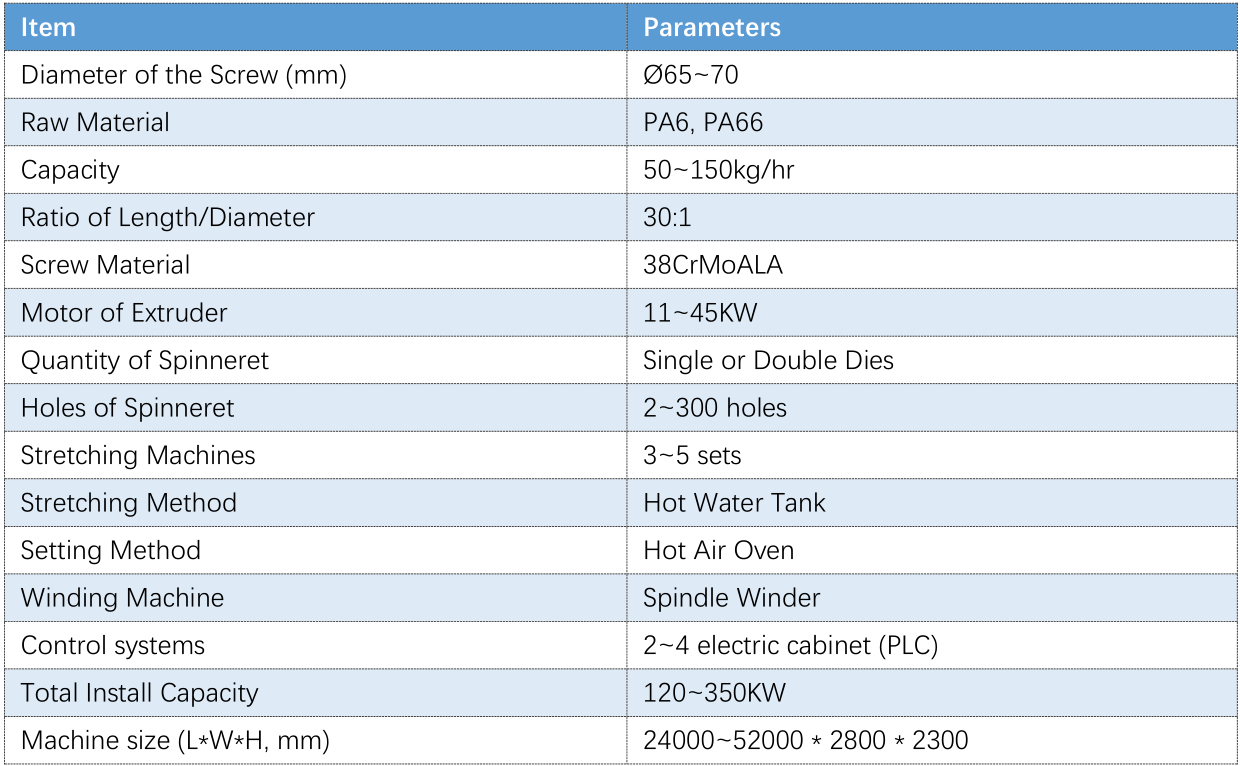

Typical Parameters of the Extrusion Machine
pa monofilament extrusion machine for fishing industries
Zonel Plastic can arrange the produciton/customize according to clients' reqiremets.
Polyamide/PA/Nylon Monofilament Extrusion Machine Series 3.
Main application:
For the production the trimmer lines, guitar strings, etc.
trimmer line trimmer line on bobbins guitar string



Typical Parameters of the Extrusion Machine
trimmer line extrusion machine
Zonel Plastic can arrange the produciton/customize according to clients' reqiremets.
